Baker mfg.co. sailing hydrofoil. 3D models

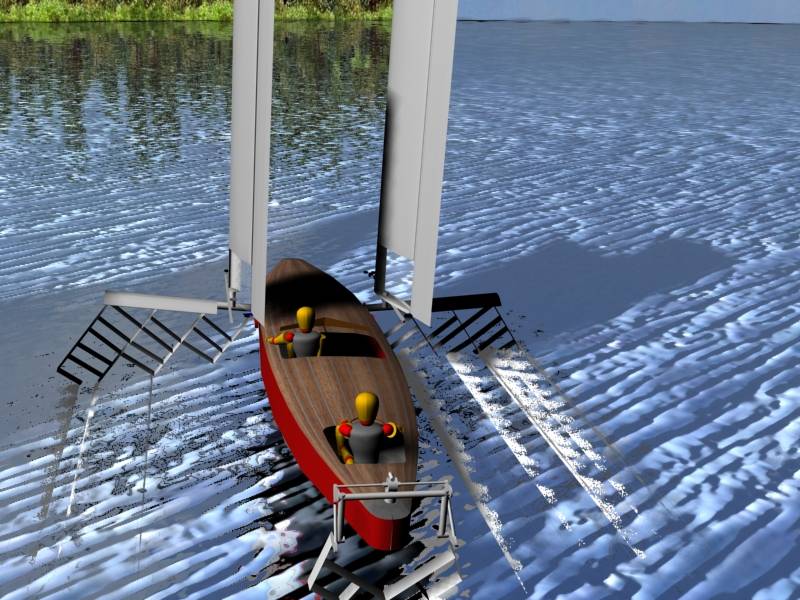

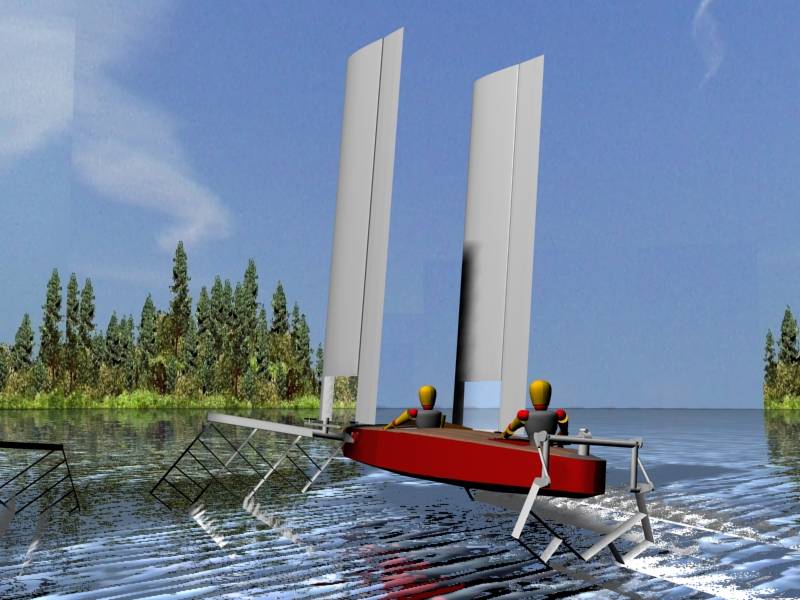

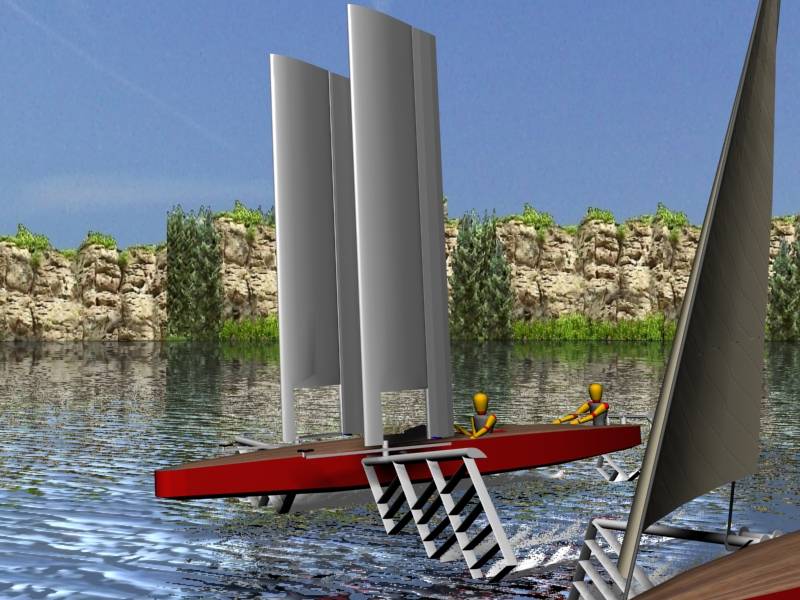

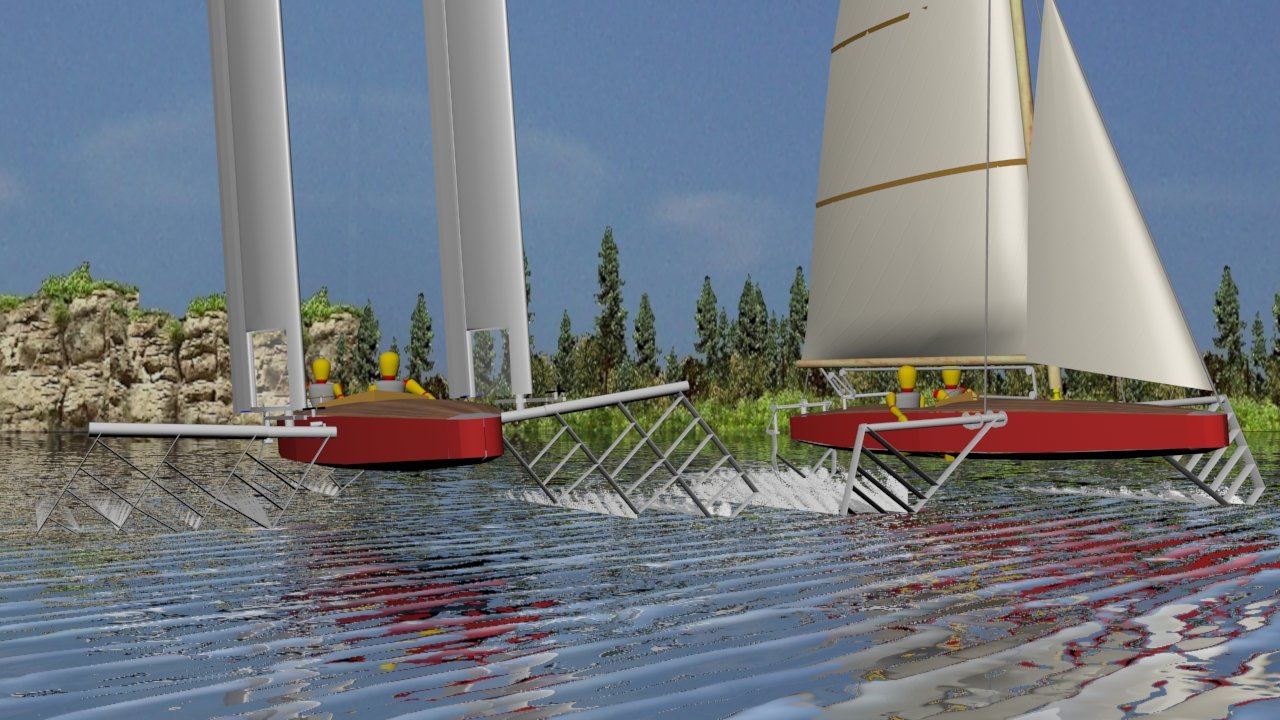

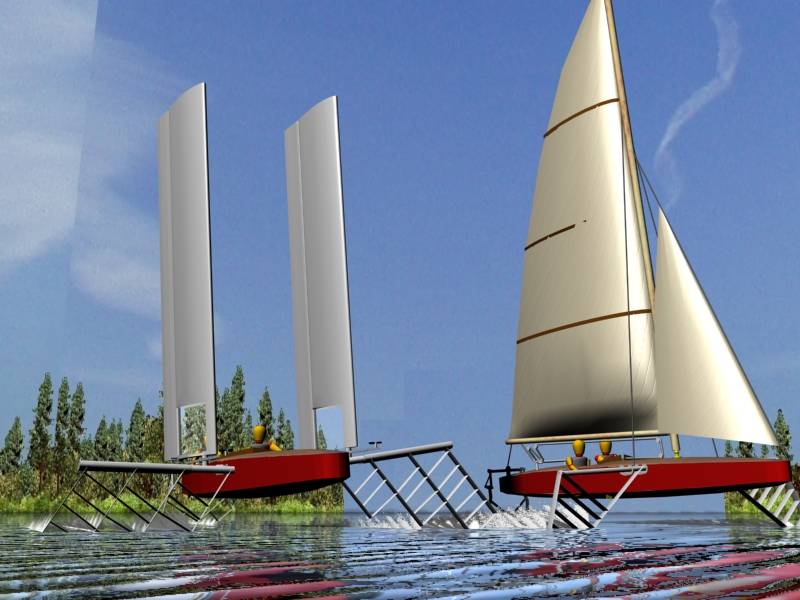

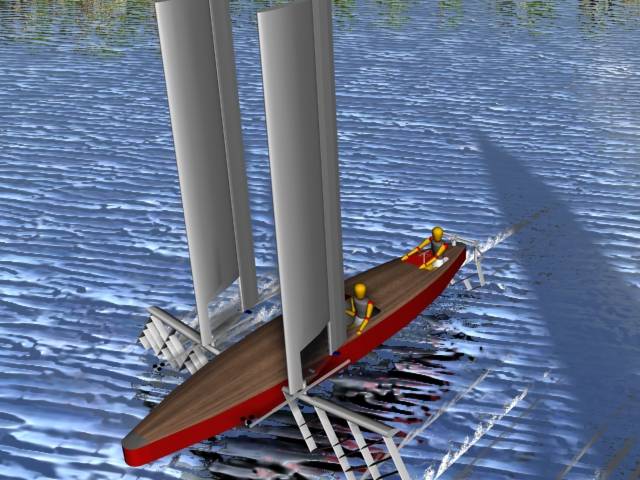

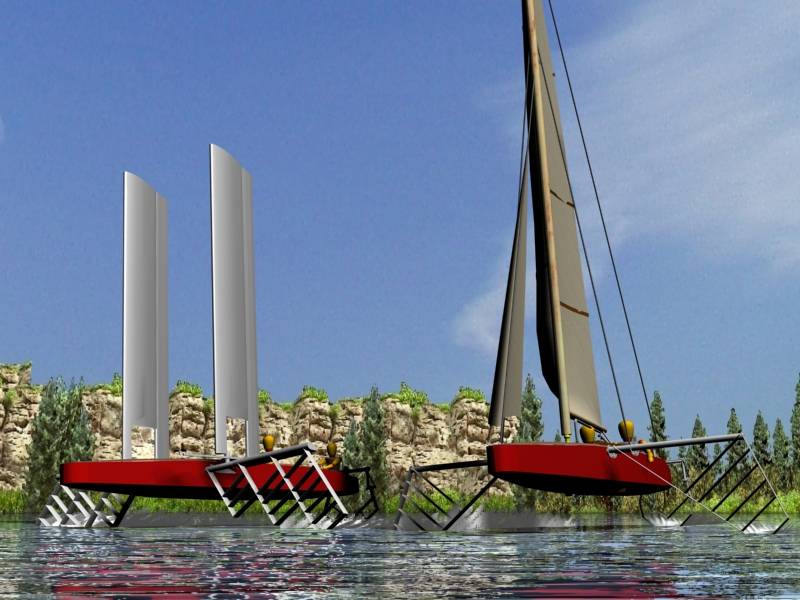

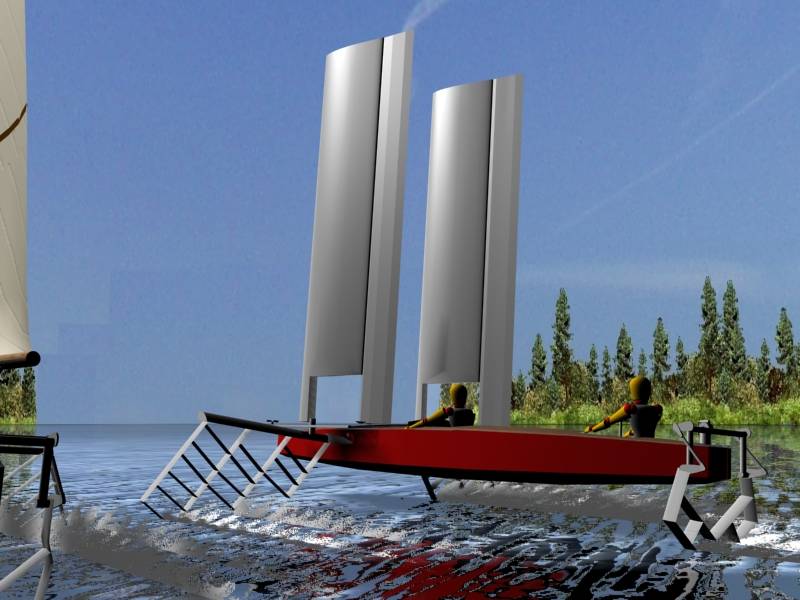

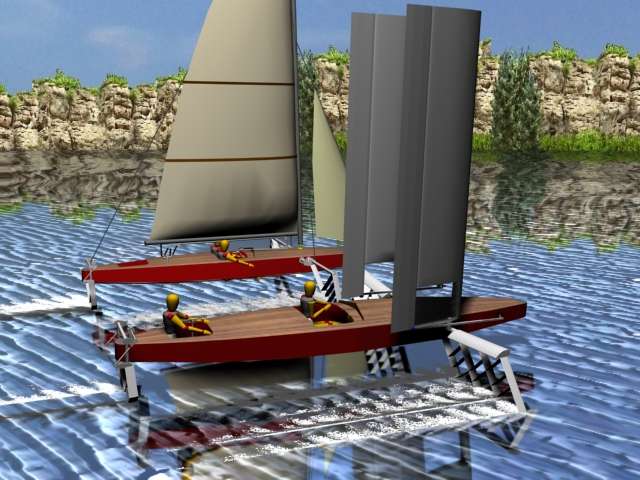

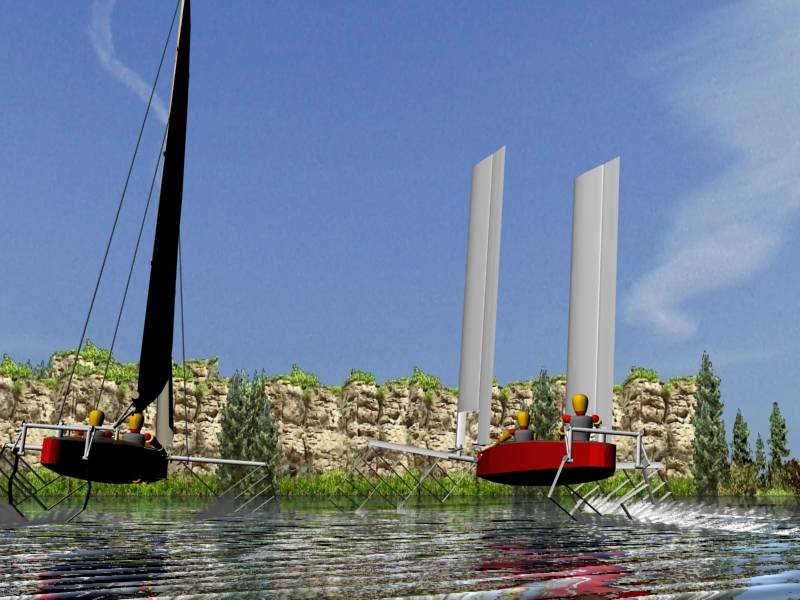

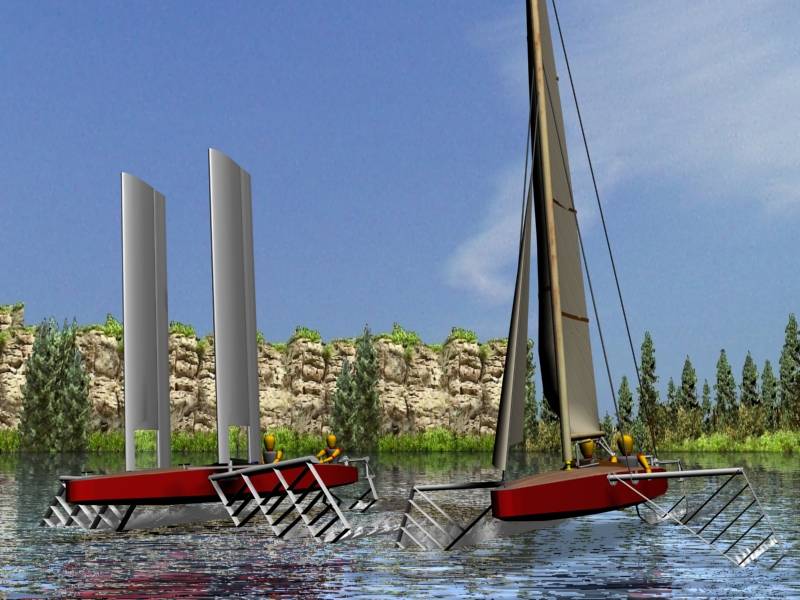

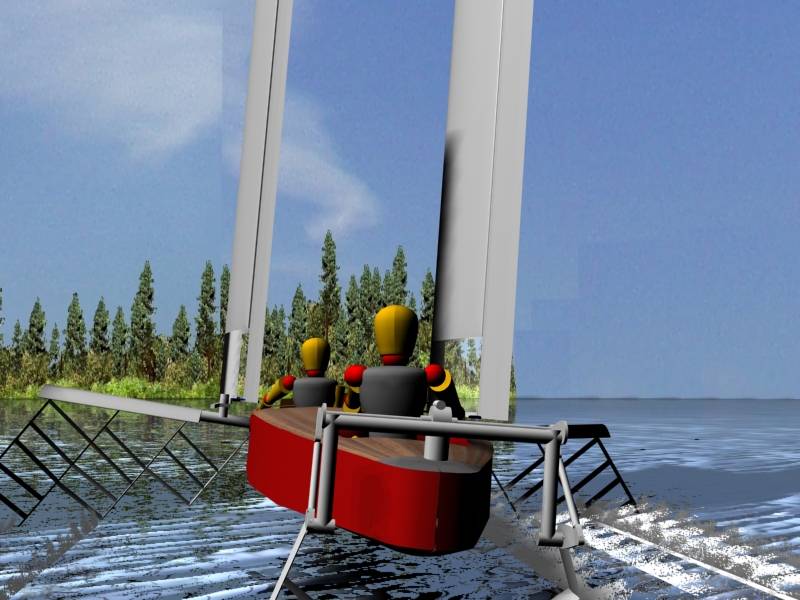

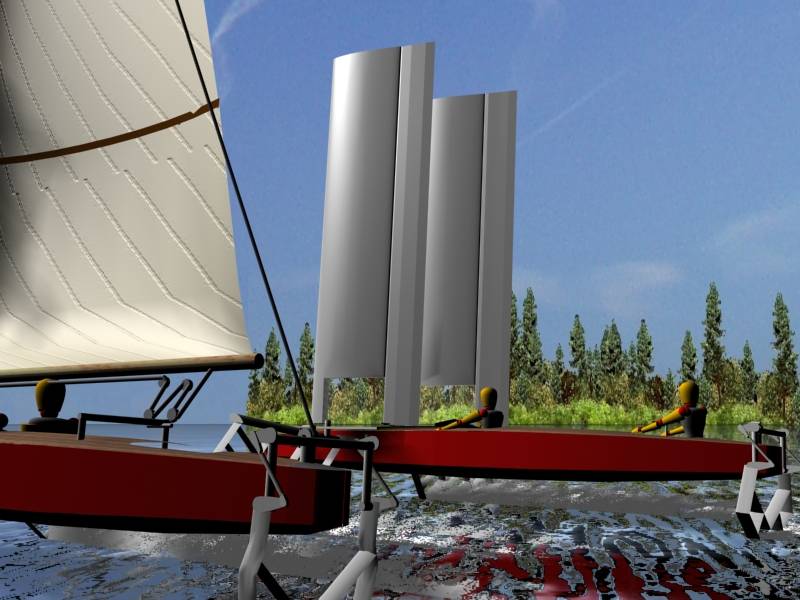

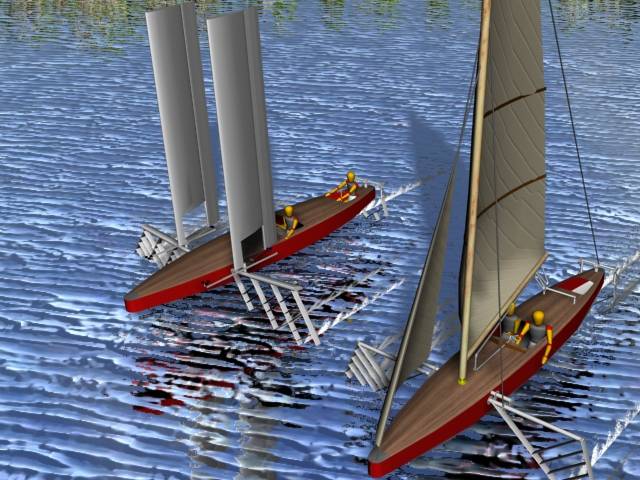

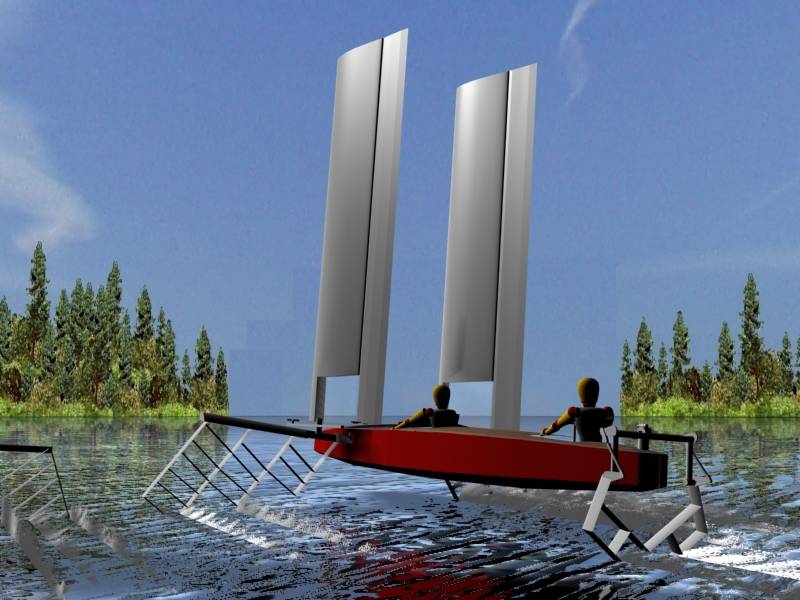

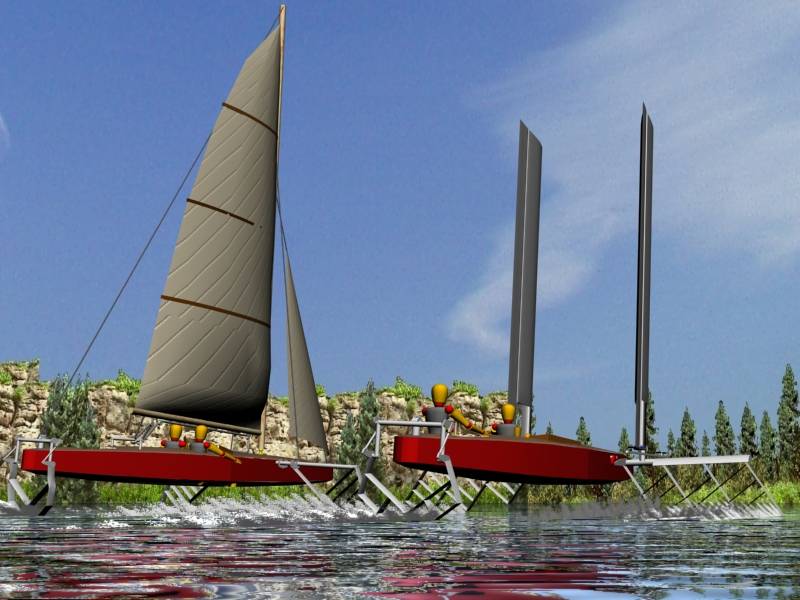

Presented on this page are renderings of 3D models made based on drawings of Monitor and her original wingmasted design.
Which was abandoned for cost reasons.
The wingmasted version would have been a true revolutionary craft, remember this was the 1950's.
Although the 3d models are not very refined, the comparison with the photo's is good, so the impression of the wingmasted version also must be ....

renderings from 2000-2001
